A new, highly efficient, 11-ply Fabric with Aluminum and Thermal System

Optimal transport and storage for all temperature-sensitive products.

THERMALFOILS

THERMAL BOXES

THERMAL ASSEMBLIES

What are THERMAL FOILS?

THERMAL FOILS are a genuine innovation:
TM THERMAL FOILS is an 11-lagiges PE aluminum compound fabric, which itself due to its thermal core by particularly good isolation-values distinguishes.
Examined by the TÃœV Bavaria, Examine-NR. G3-WUW 50-HO. That means for you:
Four times higher protection and four times larger security for all temperature- susceptible products.

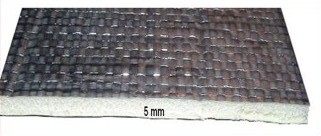

Material thickness is 5 mm!

By the very good insulation values an optimal protection of your temperature sensitive goods is given.

Special Service: TM THERMAL FOILS are very well manufacturable and can individually from there to your needs be adapted.
In other words - we manufacture desired/ used dimensions ago according to your measure data. That is valid also for the
THERMAL BOXES.

Versatile use wherever there are requirements, such as

• Fast + easy
• To ensure temporary or permanent insulation for products or goods –
• Whether against cold weather against heat

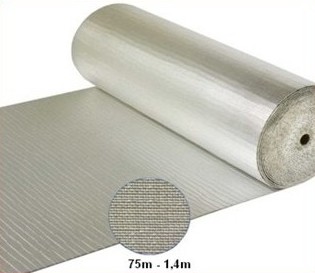

THERMAL FOILS are supplied as standard to rolls with 1, 40 m width and 75 m length.
In addition, if necessary or on requirement cuts can be manufactured.
By the very good isolation values more optimal protection of your temperature-sensitive goods is given.
TM THERMA FOILS are very well manufacturable and leaves from there individually adapt to your needs.

Advantages

â–º little weight (example: TM 3 for LD 3 only 14 kg)
â–º re-usable over several years
â–º handling by one person
â–º installation of TM 3 for LD 3 by one person within five minutes
â–º excellent insulation values
â–º workable three-dimensionally
â–º compact but still stable construction
â–º Individual tailor-made solutions
â–º short term delivery times and/or confections supply
â–º Insulating linings in both civil and military applications
â–º camping and caravanning

Technical Data

Construction

LDPE-Aluminium-bonded Fabrik

Foil Thickness

5 mm

Color

Aluminum  on both sides

K-Value

1,16 W/m²K

Tensile Strength

DIN 53354 accordingly

lengthwise

Approx. 870 N / 5 cm

crosswise

Approx. 1.000 N / 5 cm

Tensile Strain

DIN 53354 accordingly

lengthwise

ca. 15 %

crosswise

ca. 15 %

Fire Resistance

(DIN 53438) flame-resistant

Temperature area of application

-20°C to +80°C

Packaging in Rolls

1,40 x 75 m

Special Thermal Boxes

For all Cargos on sea or into air or on roads. Tailor-made of THERMAL FOILS.  Accordingly to your instructions.

TM THERMAL-FOILS  +  THERMAL BOXES.

The fast, easy transport and storage and protection for all temperature-sensitive  goods.


Interested?

Please contact us - we tell you all the important terms + options. We will respond promptly.
