Scaffold Protection Tarpaulin

Marketing Link A.H.Heyl - Sales D-65795 Hattersheim Phone +49 (0) 6190 -3155 Fax.+49 (0) 6190 - 72563

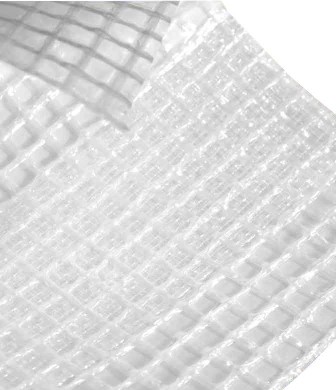

TM-Scaffold Protection Tarpaulin
The complete Program for needed Protection of Scaffolds

The reinforced Eyelets edges and the flexible Properties of the
TM protection-tarpaulin for scaffolds permits a conceivably simple installation.
Our TM Scaffold Protection-Tarpaulin has multiple lengthwise eyelets bands of 5 cm width.
The eyelet bands every 10 cm are all pre-drilled.
On one side there is a double eyelet band, thereby these tarpaulins becomes suitable for
all scaffolding of 2.57 m and 3.07 m widths. In eleven dimensions. For short notice deliveries.
Up on request also available in bale packing or as rolls.

Technical Data:
Commodity	Polypropylene Substrate
Substrate coating	LDPE
Weight	170 g/m2
Color	transparent film with white Lattice Insertion
Tensile strength	700 N / 5 cm
Elongation	100 N
Pull out-resistance of Eyelet band	600 N
Temperature range	-40 ° C to +80 ° C
Light Transmission	70% (!)
Width	0.80 / 1.10 / 1.70 / 2.20 / 2.70 / 3.20 / 4.10 m
Length	10/20 m; lengths depending on Width of the plane
Packaged in	cardboard, on Euro pallets


	The low-cost quality slide according to – DIN 4102 B1

TM Scaffolding-Protection Network
The complete Program for needed Protection of Scaffolds

This lightweight Scaffolding Protection Tarpaulin allows a protective and comfortable
and safe working on the scaffolding and protects pedestrians against falling objects.
Due to the flexible properties of our Scaffolding Protection Network a simple assembly
is guaranteed to each scaffold.
Our TM-Scaffolding protection network has to both sides in the middle double interwoven
Polyester Yarn with Buttonholes every 5 cm.

Technical data:
Material	HDPE Polyethylene
Weight	50 g/m2
Color	green, white
Tensile strength	210 N / 5 cm
Elongation	45 N
Pull out-resistance of buttonholes	80 N
Temperature range	-40 ° C to +80 ° C
Width	2.57 / 3.07 m
Length	10/20/50 m
Packing	8 or 4 pieces each carton


	TM Scaffold-Protection Tarpaulins - all you need for safety and protection for construction areas.


	Interested? Please contact us - we tell you all the important terms + options. We will respond promptly.
