	TERRA-flex

	BT BEAVER-TILE-SYSTEM The BT Beaver-Tile-System is accompanied by an equally refined as a simple connection system, equipped with a safe, permanent and twisting-free linkage of the

BT Beaver Elements, allows each other as well as a useful and quick mounting on the roof, here again on a fully formwork.

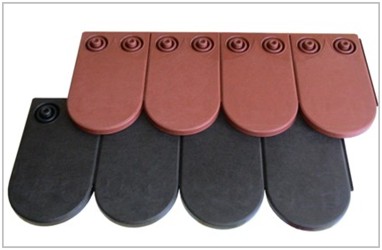

The transfer is expressly fast - 4 Beaver tiles (tapes) means one Composite Element = 1 BT Beaver-Tile-Element,
means a 4-fold speed installation.
The fastening is done by means of hidden screws.

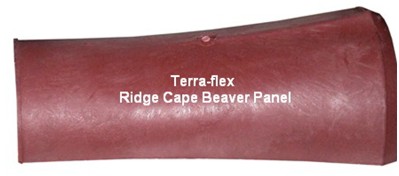

The BT-Beaver Element is completed by form-oriented + useful ridge-Capes as well as adjusted colored Local Roof Borders and Edge-Profiles made of Thermoplastics.

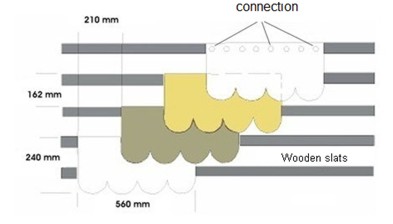

	Technical Data TERRA-flex BT BEAVER-TILE-SYSTEM 240 x 560 x 15 mm High x Length x Thickness 4 Taps (Tiles) equipped by Tie-clip - technology Weight of BT-Beaver-Element 900 g Colors: anthracite - red-brown - brick red - terracotta Minimum roof pitch 12 Packing unit = 1 Bundle = 16 Pieces Pallet = 36 Bunches = 576 Pieces Requirements per sm² 10, 5 Panels (incl. 5% Losses)


	Interested? Please contact us - we tell you all the important terms + options. We will respond promptly.
