TERRA-LUX
TECHNICAL  INFORMATION
Multi Function Panels (MFP)
for glazing without connection profiles
and highest requirements ROOF + FACADE

TERRA-LUX

Transparency + Protection

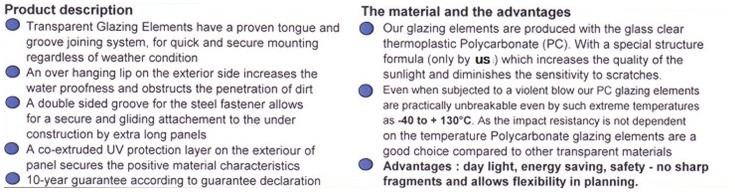

The New Multi-Function Panel (MFP)
is the advancement of the well known
Solid Sheets, but has a molded Coupling and does not need any Aluminum-Profiles to connect itself. The System is made of polycarbonate, the MFP offers the best Weather resistance at high and low Temperatures.
These characteristics become on both sides by the surfaces of a so-called Co-Extrusion an UV-protective layer secured. Thus, the MF-panels can be used alternatively according to the installation situation.
By the molded coupling the panels can be
easily and securely clipped in.

The proven accessory frame-system allows the

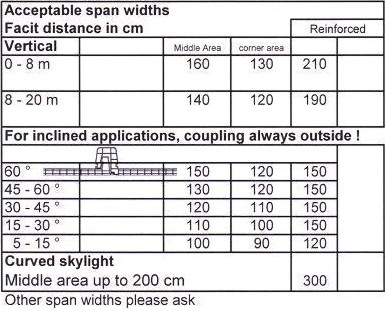

various, safe and economic assembly. An additional rungs-profile can also increase the spans significantly .


Alle these statements reflect our current knowledge and does not purport to be complete.

Technical changes reserved. Please examine whether our products are suitable for your purposes

Areas of application

Due to the good U-value by the 4-layered execution as well as by those alternatively application
 - Outdoor clutch or clutch inside -
 this panel is ideally suitable for economical

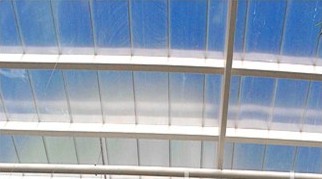

• Glazings at ROOF   WALL
• tennis courts and sports halls
• curved cantilever   sprout-free Skylights
• gable roof glazing
• flat-sloped roofs
• Warehouses
• Agricultural and Greenhouses


*Guaranties in accordance with our terms of the warranty

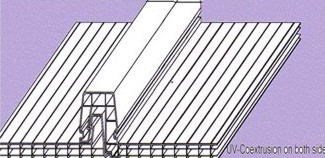

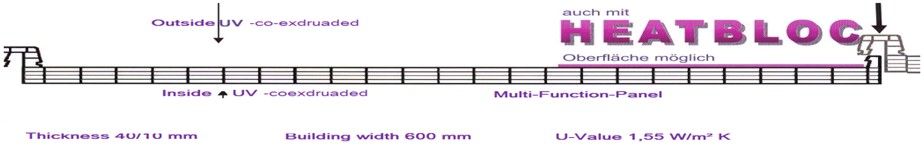

The new MULTI-FUNCTION PANEL does not take only as THERMO-LIGHT SYSTEM his commitment but also for other large-scale applications for ROOF + WALL.  The bilateral co-Extrusion on both sides permits to use the panel with the coupling part to the outwards or inside.

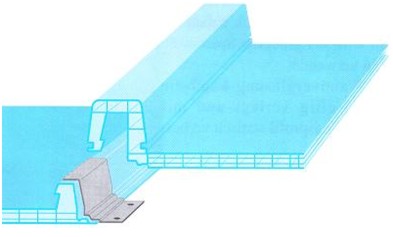

In the roof area generally the coupling is outwards in order to execute itself very low roof pitches to be waterproof. Through the 4-shell configuration provides the MFP panel a very good K-value of 2.50 W / m² K. The Flat-Steel Fastener (see detail picture above) provides a good mounting, whereby the panel under thermal influence can be material-compliant extending.

Multi-Function-Panel – MFP

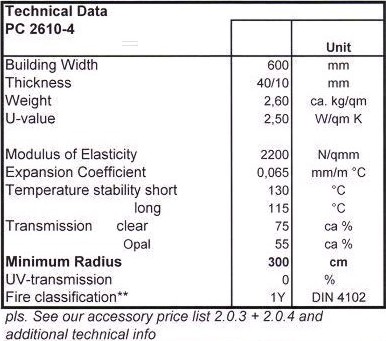

PC 2610-4 for glazing’s Wirth integrated coupling
10 Year Guarantee – accordingly with regulations of guarantee


Multi-Function-Panel made from Polycarbonate

unprecedented opportunities to realize :  clean -  fast -  inexpensive -  permanently ..

Interested?

Please contact us - we tell you all the important terms + options. We will respond promptly.
