	TM Geo-Tec A tested Three-Ply-Protection and Drain System For foundation walls in accordance with DIN 18195 and DIN 4095 Addition + optimization for so-called thick coatings... On isolated foundations. While thick-coatings are permanently sealed, filling cracks and joints, them are at the same time however extremely impact- and pressure-sensitive with the mechanical backfilling, with earth setting or roots movements. Consequence: Laborious one, time and thus cost-intensive security-work before and during backfilling, as well as the risk of un-indented of tearing off the entire structure of isolation from thick- coating and of incalculable later complaints. With TM Geo-Tec gives you a complete problem-solving as a protection- and drainage system for earth-affected buildings, which provided with thick coatings or other sealing’s. The protective effect corresponds to the requirements of the DIN 18195. Besides the water derivation ability is substantially increased by the Knobs aligned to the soil. The requirements of the DIN 4095 are fully ensured. The NTM geo Tec Membrane is free from recycling material and. Carries that Characteristic 1213-CPD-3334 it is conformal with the requirements the EN 13252.

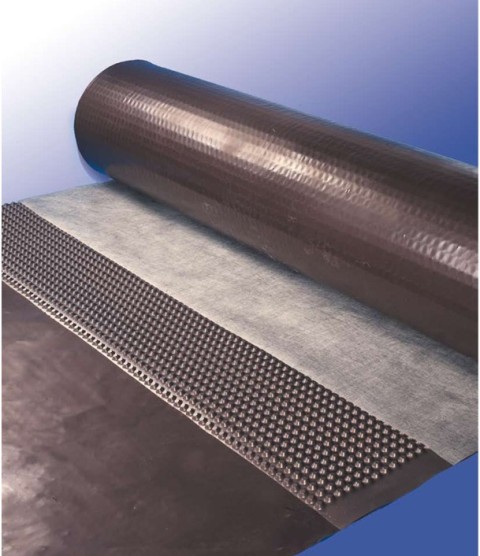

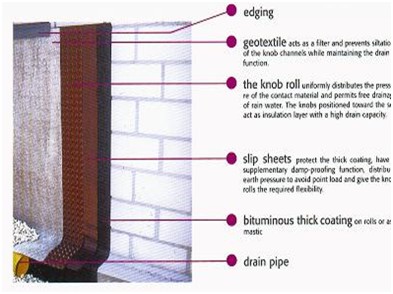

	TM Geo Tec is a three-fold protective system, which is attached directly on the Bitumen Thick Coating. The system consists of a sliding foil, a regular 1. TM-8 Knob-Membrane and 2. A Sturdy Filter Fleece.

	Are all together connected with the Knob Membrane. Sliding foil and filter fleece ensures for a target adhesion and secure thereby the steadfastness of the constructional isolation measure.

		TM Geo-Tec TM offers significant advantages, which are totally positive:

• Even share out of the earth pressure and neutralization of point loading.
• Additional seals sliding effect by the foil.
• Highly effective drainage effect and optimal water derivation ability by the Knob-Channels of the Membranes.
• Extremely high compressive strength of the Knob Membranes, thus very large depths are possible.
• The filter fleece from polypropylene prevents siltation of the Membranes Knobs
• Highly effective and permanent filter function of the fleece by optimal pore distribution.
• Improvement of the building climate by isolating cavities.
• Absolutely temperature resistant can be processed also with minus degrees.
• Simple and fast assembly.
• age-stably by special stabilization components.
• Environmental compatibly: The material can be completely recycled, and has not any toxic effects on the ground water.
• Protection and drainage system in accordance with DIN 18195 and DIN 4095
• Scientifically examined.
• Conformal the requirements of the EN 13,252th


	By using a high-quality polyethylene, the TM-Knob Membranes are: • Impact resistant • form-stably • root-resistant • non-freezing • acid-resistant • rot-resistant.


	TM-Geo Tec - the Special Three-Fold Protection and Drainage System for foundation walls.


	Technical Data

materialof KnobMembrane	HDPE ca. 700 g/m2
material Slide Foils	LDPE ca. 200 µm
material Fleece/-Geotextile	Polypropylen ca. 100 g/m2
knob heigth	8 mm
burst pressure	ca. 400 kN/m2
water drain capacity	ca 3,5 l/ms
volume of air between the knobs	ca. 5,5 l/m2
temperature range	-30 °C bis +80 °C
chemical properties	chemical-resistant
biological characteristics	bacterial-, fungus-, rot- an root-resistant
physiological characteristics	not harmful to drinking waters


	Interested? Please contact us - we tell you all the important terms + options. We will respond promptly.
